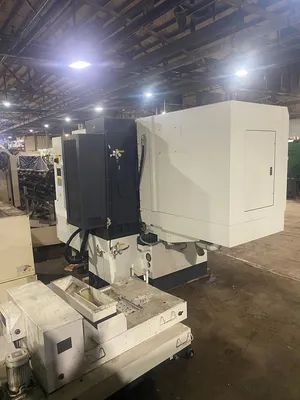

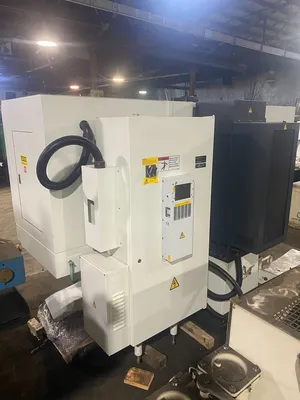

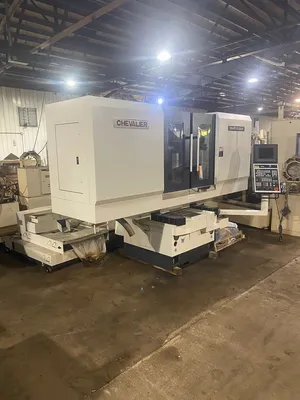

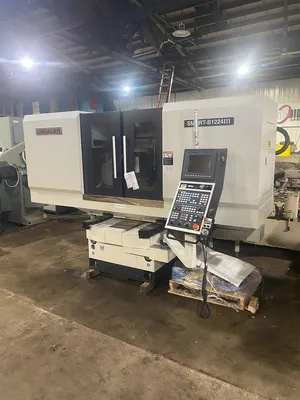

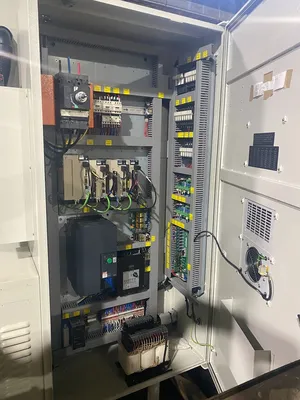

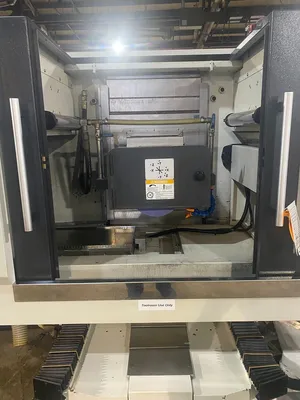

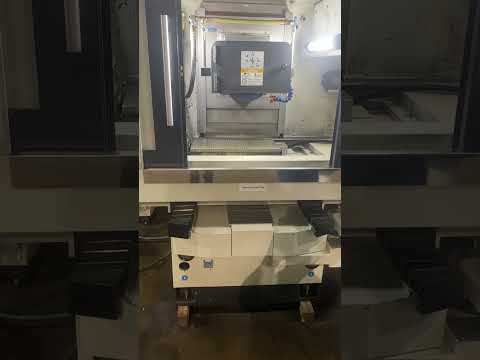

CHEVALIER #SMART-B1224III CNC 3-Axis Surface and Profile Grinder, New 2021,

Description

CHEVALIER #SMART-B1224III CNC 3-Axis Surface and Profile Grinder, New 2021, Ballscrew and Servo Motor Drives in all 3-axes

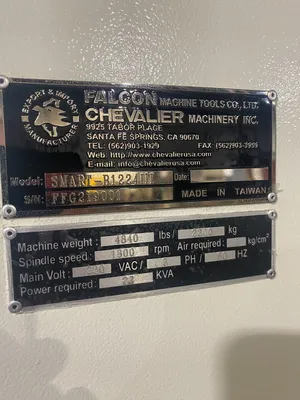

Serial Number: FFG-219001

CATALOG SPECIFICATIONS:
Capacity:
Max. Grinding Length: 24″
Max. Grinding Width: 12″
Max. Distance from Table Surface to Spindle Center: 24″
Max. Workpiece Weight: 923 lbs.

Table:
Table Size: 12″ x 24″

Longitudinal Transverse Travel:
Rapid: 0 – 65.6 FPM
Max. Travel: 28″

Cross Transverse Travel:
Max. Travel: 14″
Rapid: 0 – 10 FPM
Least Increment Input: 0.0001″

Wheel Head Elevation:
Max. Travel: 17.3″
Rapid: 0 – 10 FPM
Least Increment Input: 0.0001″

Grinding Wheel:
Spindle Speed: 600 – 2,500 RPM
Grinding Wheel: 14″ x 2″ x 5″
Spindle Motor: 15 HP

Accuracy:
Positioning Accuracy: 0.0002″
Repeatability: 0.00012″

Tank Capacity:
Lubrication Tank: 2.6 Gallons

Mechanical Specifications:
Dimensions: 104” L x 100.8” W x 82.3” H
Weight: approx. 7,074 lbs.

EQUIPPED WITH:

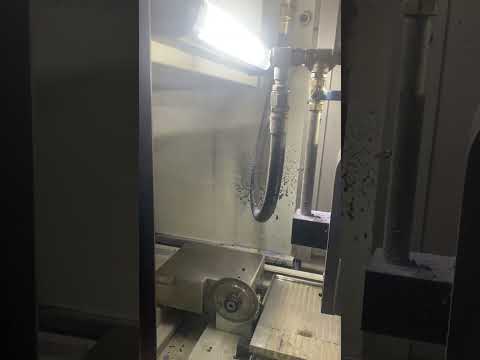

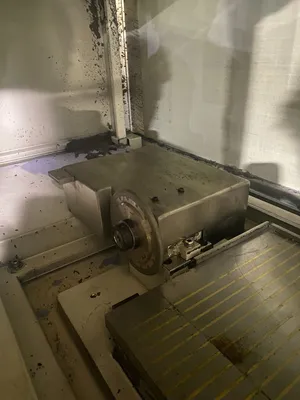

Single Disc Table Mounted Rotary Dresser and Single-Point Diamond Dresser Mount

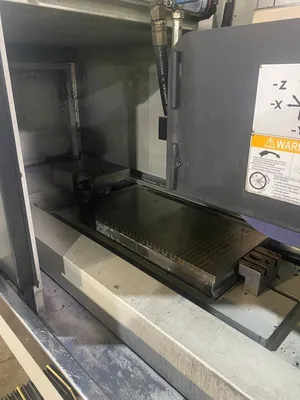

Magnetic Chuck

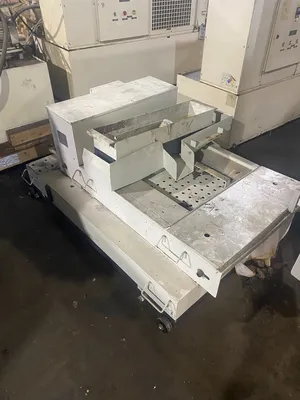

Coolant System

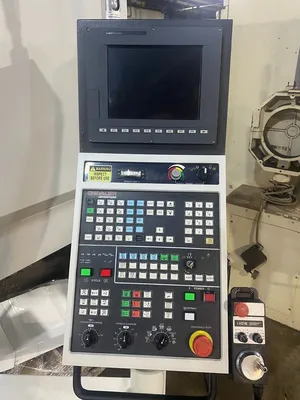

SMART-III Control
Features
1. Microsoft Win CE 6.0 platform with 10.4 LCD color screen
2. Data transfer is simplifi ed by using a USB data port or Ethernet
connection
3. Graphic conversational surface/plunge/criss-cross/profile
grinding and dressing modes
4. Easy operating TaskLink function: User can link several
conversational graphic programs together
5. Highly efficient constant-contact auto dressing function
6. Automatic dressing with compensation during grinding cycle
7. During grind or dress simulation; program is advanced or halted
by turning the MPG
8. Wheel manager function
9. SMART-III control is compatible with FANUC control
10. Energy saving function
