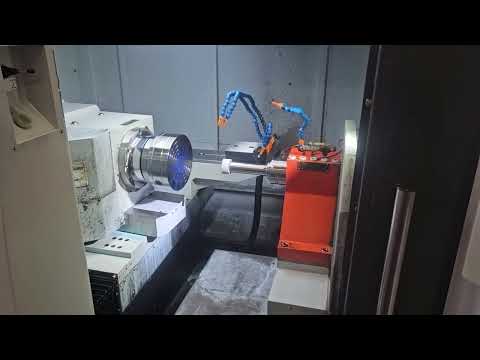

Supertec EGI-150CNC ID Grinder, New 2023

Description

Supertec EGI-150CNC ID Grinder, New 2023
S/N EGI23003

Catalog Specifications:

General capacity
Max. grinding ID φ11.8"
Max. grinding OD φ11.8"
Swing over workhead φ19.6"
Max. grinding depth 10.2"
Max. weight of workpiece 110 Lbs.
Max. length of workpiece 11.8"
Type of workhead A2-5

Workhead (X Axis)
Swiveling angle range +15°~ -5°
Manual travel distance (toward Z axis) 9.8"
Spindle speed (infinite variable) 0~1000 (Variable speed) rpm
Servo motor rated power 1.8(F)/2.2(M) kw

Grinding Wheelhead (Z axis)
ID grinding wheel size φ3.9"
End-Surface grinding spindle (Opt.Z2) φ3.1"(CBN)
Spindle motor/ max. torque 3.75Kw / 13Nm

X axis
Travel 12.2"
Rapid feedrate 314" In/min
Heidenhain linear scale resolution 0.000002"
Min. increment 0.000010"
Servo motor rated power 1.8(F)/2.2(M) Kw

Z axis
Travel 13.7"
Rapid feedrate 314" In/min
Min. increment 0.000010"
Servo motor rated power 1.8(F)/2.2(M) Kw

Machine
Net weight 11203 Lbs.
Gross weight 12125 Lbs.
Packing size (L x W x H) 132"x88"x77"

Equipped With:
Fanuc Serios Oi-TF Plus Control
Workhead Swivel Digital Read Out Option
15,000-RPM Internal Spindle
7.8" Round Magnetic Chuck
Diamond Dresser
Mist Collector
Coolant System
