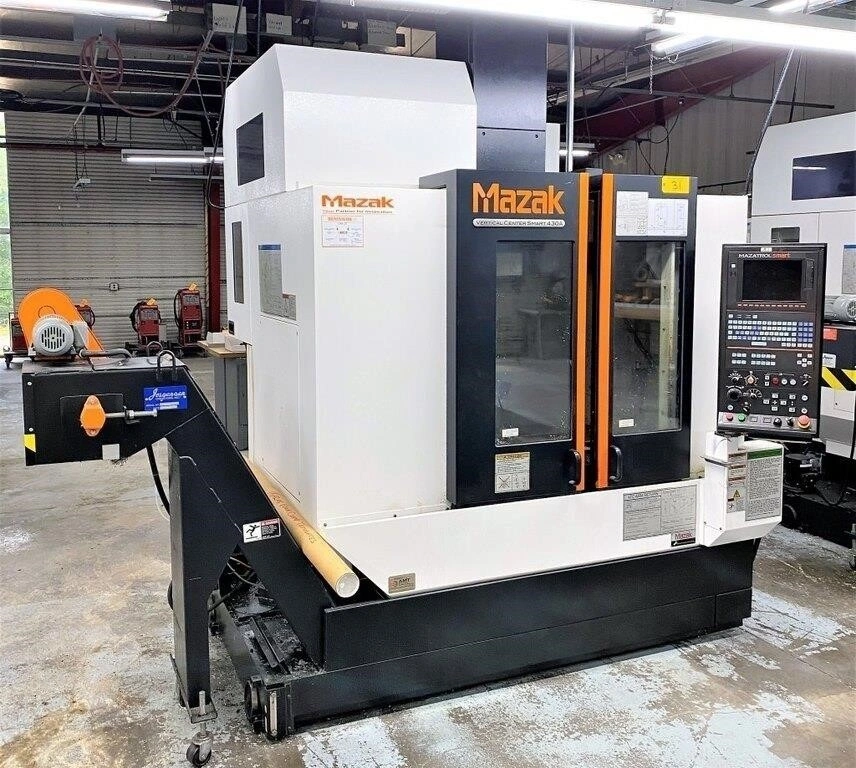

MAZAK SMART VCS-430A CNC VERTICAL MACHINING CENTER, NEW 2012
Have one to sell?
ConditionUsed
1 available
MAZAK SMART VCS-430A CNC VERTICAL MACHINING CENTER, NEW 2012
SERIAL NUMBER 233187
CATALOG SPECIFICATIONS:
TABLE SIZE 35.43” X 16.93”
X-AXIS STROKE 22.05”
Y-AXIS STROKE 16.93”
Z-AXIS STROKE 20.08”
SPINDLE FACE TO TABLE SURFACE (MIN/MAX) 5.91” / 25.98”
MAXIMUM TABLE WEIGHT CAPACITY 1,102 LBS
SPINDLE SPEEDS 12,000 RPM
SPINDLE MOTOR 25 HP
SPINDLE TAPER CAT-40
NUMBER OF TOOLS 30
SPINDLE TAPER CAT-40
Dimensions 103.29” x 81.89" x 109.37"
Weight 10,142 LBS
Equipped With
MAZATROL SMART CONTROL, 10.4” COLOR LCD
COOLANT SYSTEM
CHIP CONVEYOR
FULL ENCLOSURE
RENISHAW TOOL SETTER AND RENISHAW TOOL PROBE (See Photos)
MAZATROL SMART CONTROL, 10.4” COLOR LCD
COOLANT SYSTEM
CHIP CONVEYOR
FULL ENCLOSURE
RENISHAW TOOL SETTER AND RENISHAW TOOL PROBE (See Photos)
MAZAK SMART VCS-430A CNC VERTICAL MACHINING CENTER, NEW 2012
SERIAL NUMBER 233187
CATALOG SPECIFICATIONS:
TABLE SIZE 35.43” X 16.93”
X-AXIS STROKE 22.05”
Y-AXIS STROKE 16.93”
Z-AXIS STROKE 20.08”
SPINDLE FACE TO TABLE SURFACE (MIN/MAX) 5.91” / 25.98”
MAXIMUM TABLE WEIGHT CAPACITY 1,102 LBS
SPINDLE SPEEDS 12,000 RPM
SPINDLE MOTOR 25 HP
SPINDLE TAPER CAT-40
NUMBER OF TOOLS 30
SPINDLE TAPER CAT-40
Dimensions 103.29” x 81.89" x 109.37"
Weight 10,142 LBS
