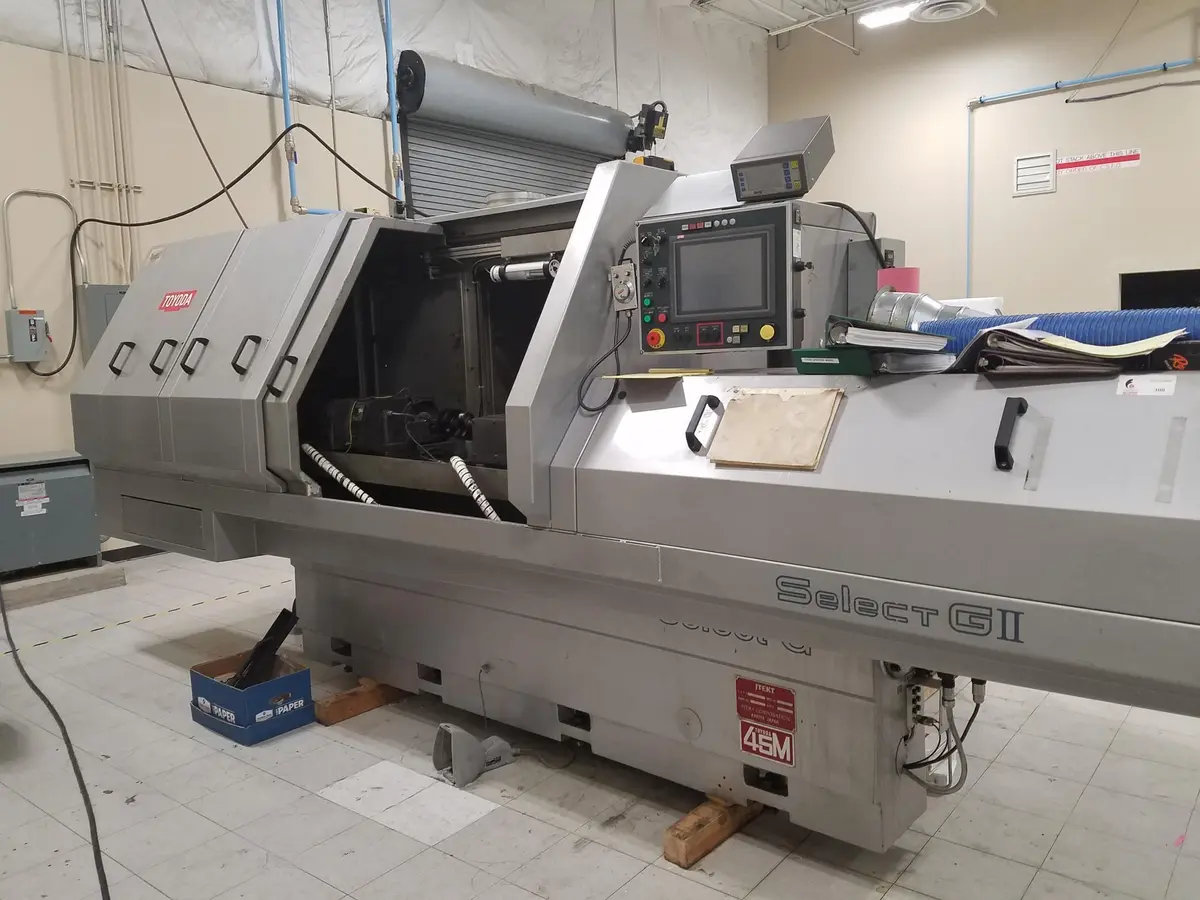

Toyoda Select G-100 CNC Cylindrical Grinder, New 2011, CAN BE USED AS EITHER A STRIAGHT OR ANGLHEAD GRINDER
Cylindrical Grinders Including Plain & Angle Head
EQUIPPED WITH
- Toyoda GC-50 Touchscreen Control
- Rotary Dresser
- In Process Sizing Gauging
- Shoulder (Lateral Locating) Gauge
- SBS Automatic Wheel Balancer
- Paper & Magnetic Coolant Filtration System
| Swing | 12.59" |
| Centers | 40" |
| Grinding Wheel Dia. | 20" |
| Gauging (Yes/No) | Yes |
| Dresser (Yes/No) | Yes |
| Control | CNC (GC-50) |
CATALOG SPECIFICATIONS
Swing 12.59 in
Center Distance 39.37 in
Max Load Between Centers 330 lb
Workhead Taper MT No.4
Workhead Speed 500
Z-Axis Travel 50 in
X-Axis Travel 10.73 in
Wheel RPM 1230
Grinding Wheel Dia. 20 in
Gauging (Yes/No) yes
