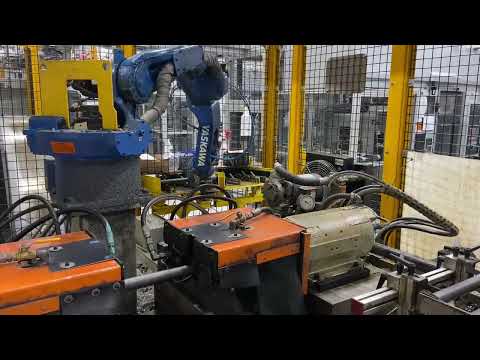

West Michigan Spline, Inc Model: 32E Face & Center, New 2018, WITH ROBOT
Facing & CenteringChip Conveyor
Coolant Tank
Unload Chutes
ROBOT INCLUDED
West Michigan Spline, Inc Model: 32E Face & Center, new 2018, WITH ROBOT
Features and Specifications:
…Length Capacity (range): 6” – 32”
…Diameter Capacity (range): 0.5” – 4.0”
…Cycle Time: 14 – 20 Seconds
…Spindle HP: 5 HP @ 3600 RPM
…PLC Based Servo Controls
…Auto Length Adjustment
…Hydraulic Power Unit: 5 Gallons
…Power, Main Motor: 5 HP / 1750 RPM
… Electrics: 230-460 Volt / 3 Phase / 60 Cycle / FLA: 12.4-6.18
Chip Conveyor
Coolant Tank
Unload Chutes
ROBOT INCLUDED
West Michigan Spline, Inc Model: 32E Face & Center, new 2018, WITH ROBOT
Features and Specifications:
…Length Capacity (range): 6” – 32”
…Diameter Capacity (range): 0.5” – 4.0”
…Cycle Time: 14 – 20 Seconds
…Spindle HP: 5 HP @ 3600 RPM
…PLC Based Servo Controls
…Auto Length Adjustment
…Hydraulic Power Unit: 5 Gallons
…Power, Main Motor: 5 HP / 1750 RPM
… Electrics: 230-460 Volt / 3 Phase / 60 Cycle / FLA: 12.4-6.18
