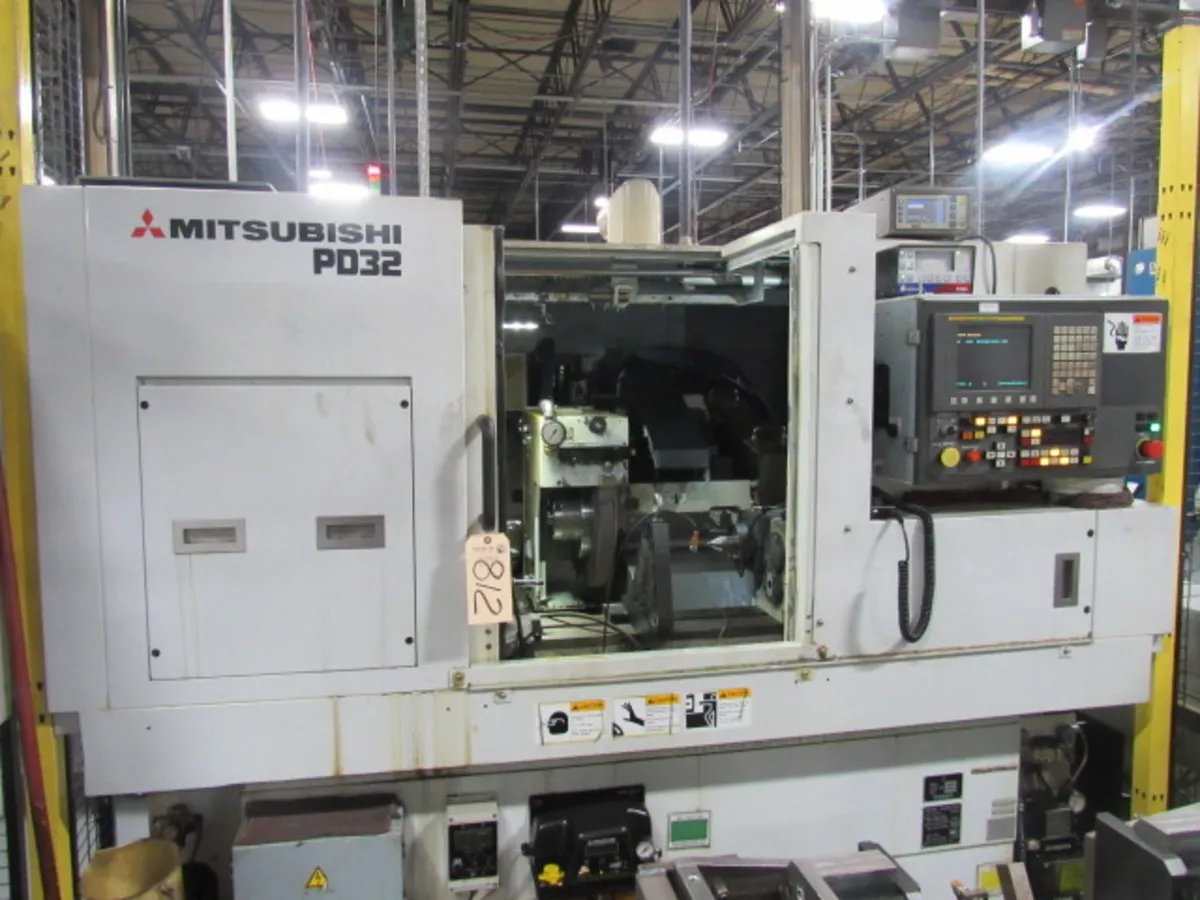

MITSUBISHI PD32-50P CNC STRAIGHT CYLINDRICAL GRINDER, NEW 2013
Cylindrical Grinders Including Plain & Angle Head
Fanuc Series 32i-B CNC Control
Swiveling Live/Dead Combination Workhead
Rotary Dresser
SBS Automatic Wheel Balancing
Lateral Locating (Shoulder Gauge)
NOTE: NO COOLANT TANK, RAN ON CENTRAL SYSTEM
| Swing | 12.6" |
| Centers | 19.7" |
| Plain or Angle Head | Plain |
| Plunge (Yes/No) | Yes |
| Gauging (Yes/No) | Yes |
| Dresser (Yes/No) | Yes |
| Control | CNC (Fanuc Series 32i-B) |
CATALOG SPECIFICATIONS:
Swing Over Table, Maximum ................ 12.59"
Distance Between Centers, Maximum......... 19.7"
Grinding Wheel Diameter, Maximum.......... 20" (MIGHT BE 24”, WILL CONFIRM)
Grinding Wheel Width, Maximum............. 4.72” (MIGHT BE 5.70”, WILL CONFIRM)
Wheelhead Grinding Wheel Speed............ 60 m/s
Workhead Spindle Speeds, Range............ 0 to 500 RPM
Grinding Wheelhead Spindle Motor.......... 15 HP (11 KW)
Fanuc Series 32i-B CNC Control
Swiveling Live/Dead Combination Workhead
Rotary Dresser
SBS Automatic Wheel Balancing
Lateral Locating (Shoulder Gauge)
NOTE: NO COOLANT TANK, RAN ON CENTRAL SYSTEM
| Swing | 12.6" |
| Centers | 19.7" |
| Plain or Angle Head | Plain |
| Plunge (Yes/No) | Yes |
| Gauging (Yes/No) | Yes |
| Dresser (Yes/No) | Yes |
| Control | CNC (Fanuc Series 32i-B) |
CATALOG SPECIFICATIONS:
Swing Over Table, Maximum ................ 12.59"
Distance Between Centers, Maximum......... 19.7"
Grinding Wheel Diameter, Maximum.......... 20" (MIGHT BE 24”, WILL CONFIRM)
Grinding Wheel Width, Maximum............. 4.72” (MIGHT BE 5.70”, WILL CONFIRM)
Wheelhead Grinding Wheel Speed............ 60 m/s
Workhead Spindle Speeds, Range............ 0 to 500 RPM
Grinding Wheelhead Spindle Motor.......... 15 HP (11 KW)
