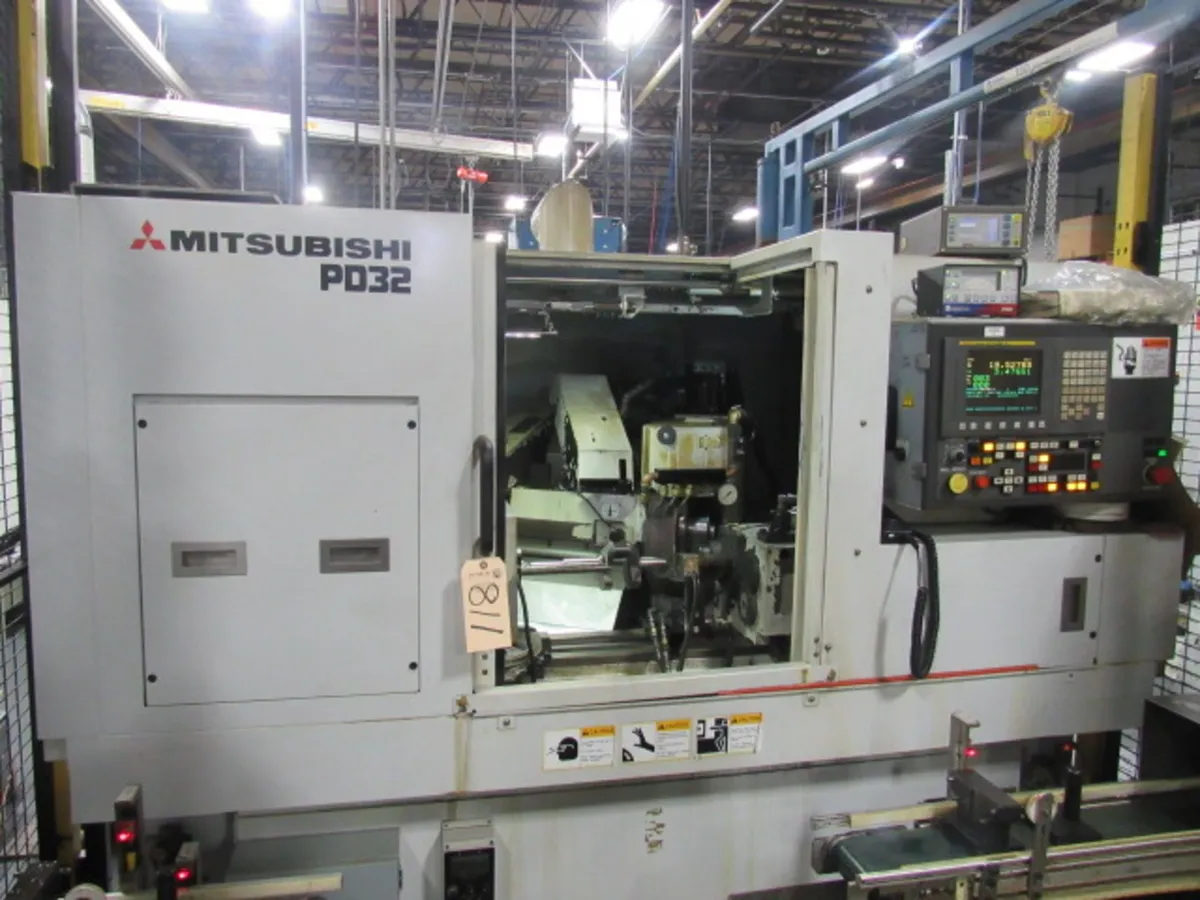

MITSUBISHI PD32-50A CNC ANGLEHEAD CYLINDRICAL GRINDER, NEW 2013
Cylindrical Grinders Including Plain & Angle HeadFanuc Series 32i-B CNC Control
Swiveling Live/Dead Combination Workhead
Rotary Dresser
SBS Automatic Wheel Balancing
Control Gauge D100 In-Process Sizing Gauge
Lateral Locating (Shoulder Gauge)
NOTE: NO COOLANT TANK, RAN ON CENTRAL SYSTEM
Swing | 12.6" |
Centers | 19.7" |
Plain or Angle Head | Angle Head |
Plunge (Yes/No) | No |
Gauging (Yes/No) | Yes |
Dresser (Yes/No) | Yes |
Control | CNC (Fanuc Series 32i-B) |
CATALOG SPECIFICATIONS:
Swing Over Table, Maximum ................ 12.59"
Distance Between Centers, Maximum......... 19.7"
Grinding Wheel Diameter, Maximum.......... 20" (MIGHT BE 24”, WILL CONFIRM)
Grinding Wheel Width, Maximum............. 4.72” (MIGHT BE 5.70”, WILL CONFIRM)
Wheelhead Grinding Wheel Speed............ 60 m/s
Workhead Spindle Speeds, Range............ 0 to 500 RPM
Grinding Wheelhead Spindle Motor.......... 15 HP (11 KW)
Fanuc Series 32i-B CNC Control
Swiveling Live/Dead Combination Workhead
Rotary Dresser
SBS Automatic Wheel Balancing
Control Gauge D100 In-Process Sizing Gauge
Lateral Locating (Shoulder Gauge)
NOTE: NO COOLANT TANK, RAN ON CENTRAL SYSTEM
