2002 TECHNIDRILL GD-.750-20-1A-24-4SP
Gun Drills
Allen Bradley Control
4-Station Chip Box
Hydraulic Cone Clamp End Support
Walking Beam Part Transfer/Loader
High Volume Coolant System w/ Conveyor
| Max Dia. Hole Drilled | 0.75" |
| Max Drilling Depth | 24" |
| # Spindles | 4 |
| Control | CNC |

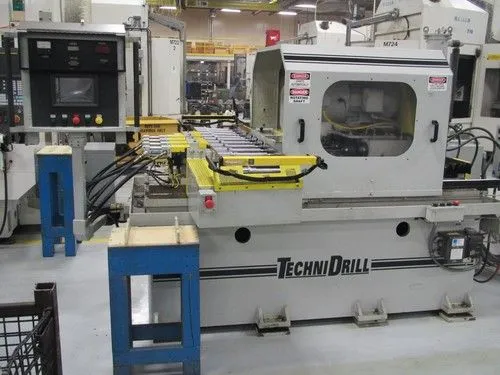

TechniDrill Pacesetter IV 4 Spindle Gun Drill
Model Number GD-.750-20-1A-24-4SP
Serial Number: 7233-06-02
Year of Mfg: 2002
Max. Drilling Diameter ..................... .750"
Max. Drill Stroke .......................... 24"
Spindle Drive Motor ........................ 20 HP
Spindle Speed Range......................... 1000 to 4500 RPM
Allen Bradley Control
4-Station Chip Box
Hydraulic Cone Clamp End Support
Walking Beam Part Transfer/Loader
High Volume Coolant System w/ Conveyor
| Max Dia. Hole Drilled | 0.75" |
| Max Drilling Depth | 24" |
| # Spindles | 4 |
| Control | CNC |
TechniDrill Pacesetter IV 4 Spindle Gun Drill
Model Number GD-.750-20-1A-24-4SP
Serial Number: 7233-06-02
Year of Mfg: 2002
Max. Drilling Diameter ..................... .750"
Max. Drill Stroke .......................... 24"
Spindle Drive Motor ........................ 20 HP
Spindle Speed Range......................... 1000 to 4500 RPM
