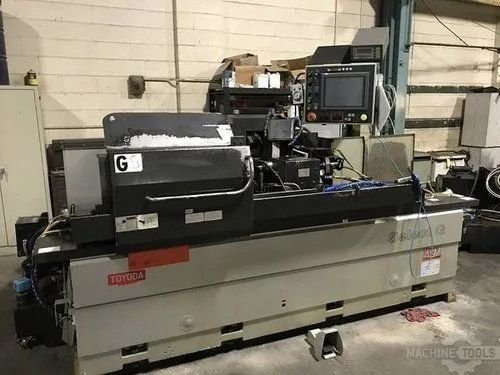

2012 TOYODA SELECT G-100
Universal Cylindrical GrindersLateral (Shoulder) Gauges, 1 Machines with Toyoda Wheel Mounted and 1 Machine with Control Gauge Table Mounted
In-Process Sizing Gauges
SBS Wheel Balancing
Single Point Workhead Mounted Dressers and Table Mounted Rotary Dressers
Coolant System with Magnetic Separators
Toyoda GC50 conversational controls, Graphical user interface, Touchscreen, 64 program capacity with external USB hard drive, Integrated can cycles, Maximum 15 points for wheel dressing
Swing | 12.6" |
Centers | 40" |
Grinding Wheel Dia. | 20" |
Max Weight Between Centers | 330 lb |
Control | CNC (GC-50) |
TOYODA SELECT G-100II CNC CYLINDRICAL GRINDER, NEW 2012, CAN BE USED AS STRAIGHT OR ANGLEHEAD
CATALOG SPECIFICATIONS:
12.6” Swing
39.4” Distance Between Centers
330 Lbs. Maximum Load Between Centers
8,500 SFPM Wheel Surface Speed
20” Diameter x 3” Wide x 8” Bore Grinding Wheel Size
Lateral (Shoulder) Gauges, 1 Machines with Toyoda Wheel Mounted and 1 Machine with Control Gauge Table Mounted
In-Process Sizing Gauges
SBS Wheel Balancing
Single Point Workhead Mounted Dressers and Table Mounted Rotary Dressers
Coolant System with Magnetic Separators
Toyoda GC50 conversational controls, Graphical user interface, Touchscreen, 64 program capacity with external USB hard drive, Integrated can cycles, Maximum 15 points for wheel dressing
Swing | 12.6" |
Centers | 40" |
Grinding Wheel Dia. | 20" |
Max Weight Between Centers | 330 lb |
Control | CNC (GC-50) |
TOYODA SELECT G-100II CNC CYLINDRICAL GRINDER, NEW 2012, CAN BE USED AS STRAIGHT OR ANGLEHEAD
CATALOG SPECIFICATIONS:
12.6” Swing
39.4” Distance Between Centers
330 Lbs. Maximum Load Between Centers
8,500 SFPM Wheel Surface Speed
20” Diameter x 3” Wide x 8” Bore Grinding Wheel Size
