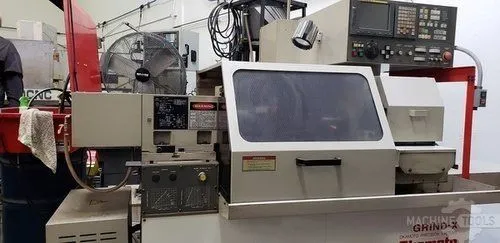

2003 OKAMOTO IGM-15NC
Internal Grinders.jpg)
.jpg)
.jpg)
FANUC-18i-T CNC Control, Conversational programming system
20,000 rpm Internal Grinding Wheel
Coolant Pump and Tank
Dresser
| Swing | 24" |
| Max Grinding Bore | 6" |
| Stroke | 5" |
| Travel-Long | 20" |
| Workhead Swivel | -5~15degrees |
| Workhead Power | 2 hp |
| Wheel Power | 3 hp |
| Workhead Speed | 100 RPM |
| Control | CNC (FANUC) |
| Dimensions | 100"x78"x67" |
| Weight | 5072 lbs. |
Okamoto IGM-15NC CNC ID Grinder, New Approx. 2003
Catalog Specifications:
Internal Diameter to be Ground: 0.24" ~ 6"
Maximum Grinding Stroke: 5
Swing Over Table: 24"
Swing Inside Splash Guard: 10"
Workhead Spindle Speed: 100~ 850 rpm
Swivel: -5 ~ 15 deg.
Maximum Crossfeed: 6.7
Maximum Longitudinal Travel: 20"
Floor Space: 100"x78"x67"
Net Weight: 5,072 lbs.
