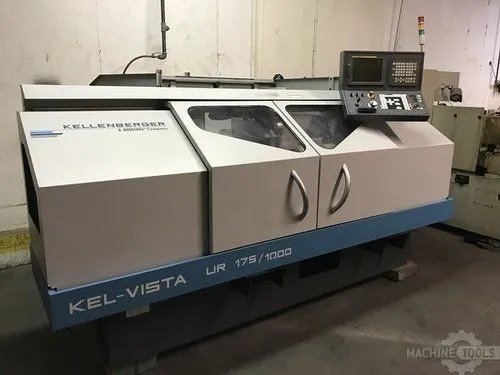

2005 KELLENBERGER Kel-Vista UR 175/1000 CNC | Universal Cylindrical Grinders

KELLENBERGER KEL-VISTA UR 175/1000 CNC OD/ID UNIVERSAL GRINDER, NEW APPROX 2005, 3 SPINDLE WHEELHEAD: OD. STRAIGHT, OD ANGLE, AND ID ATTACHMENT

CATALOG SPECIFICATIONS:
Distance Between Centers: 39.37”
Center Height: 6.89”, 13.78” Max Part Diameter
Maximum Weight Between Centers: 220 lbs.
Table Travel: 45.28”
Table Rapid Traverse: 472 IPM Z-Axis
Table Swivel Range: 9 DEG.
Cross Slide Travel: 12.6”
Cross Slide Rapid Traverse: 236 IPM X-Axis
Grinding Wheel – Left Side: 16” x 2.5” x 5”
Grinding Wheel – Right Side: 12” x 1.5” x 5”
Wheelhead Motor: 6.7 HP
Wheelhead Swivel: CNC Controlled Automatic B-Axis Every 1 Degree
Internal Grinding Attachment, 3 KW Motor
Workhead Speed: 8-800 RPM
Motor Output – Workhead: 11 LB-FT
Spindle Nose: MT 5
Workhead Swivel Range: +100/-10 DEG.
Tailstock with # 4 MT Spindle
Control: Fanuc 21I-T
Floor Space – Approximate: 12’ x 7’
Machine Weight: 11,000 lbs.
