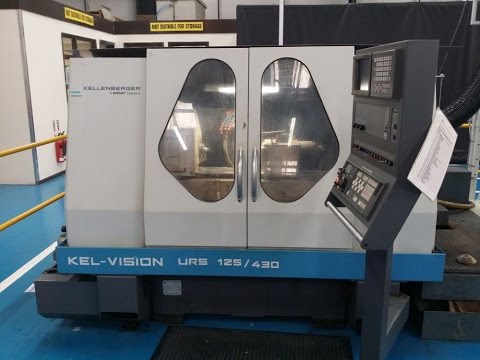

1999 KELLENBERGER KEL-VISION URS125/430

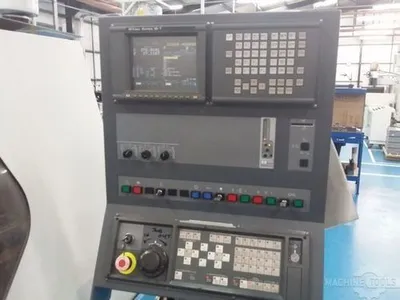

Universal Cylindrical GrindersSwing | 9.8" |
Centers | 16.9" |
Grinding Wheel Dia. | 16" |
Control | CNC (Fanuc 18T) |
Technical data
Swing: 9.84”
Center height: 125mm (4.92”)
Distance between centres: 760mm (29.92”)
Grinding length: 430mm (16.92”)
Workpiece weight on centres max: 100kg
Grinding wheel: Standard diameter: 400mm (16”) x Width: 63mm (2.5”) x Bore: 127mm (5”)
Indexing manually: 2.5°
Longitudinal slide: Z Max. travel: 650mm (25.59”)
Transversal slide: X Max. travel: 320mm (12.59”)
Work piece spindle head:
from 8 rpm up to 800 rpm
Taper in spindle: 5 MT
Tailstock:
Taper in tailstock: 4 MT
Tailstock travel of barrel: 50mm (2”)
Table speed:
Rapid motion: 12/6 m/min
Grinding spindle motor: 7.5 / 10 kW
Overall dimensions machine:
Length: 2500mm
Width: 2000mm
Various accessories:
Length positioning automatic
KEL-POS
Internal grinding attachment
Full splash cabin
Swing | 9.8" |
Centers | 16.9" |
Grinding Wheel Dia. | 16" |
Control | CNC (Fanuc 18T) |
Technical data
Swing: 9.84”
Center height: 125mm (4.92”)
Distance between centres: 760mm (29.92”)
Grinding length: 430mm (16.92”)
Workpiece weight on centres max: 100kg
Grinding wheel: Standard diameter: 400mm (16”) x Width: 63mm (2.5”) x Bore: 127mm (5”)
Indexing manually: 2.5°
Longitudinal slide: Z Max. travel: 650mm (25.59”)
Transversal slide: X Max. travel: 320mm (12.59”)
Work piece spindle head:
from 8 rpm up to 800 rpm
Taper in spindle: 5 MT
Tailstock:
Taper in tailstock: 4 MT
Tailstock travel of barrel: 50mm (2”)
Table speed:
Rapid motion: 12/6 m/min
Grinding spindle motor: 7.5 / 10 kW
Overall dimensions machine:
Length: 2500mm
Width: 2000mm
Various accessories:
Length positioning automatic
KEL-POS
Internal grinding attachment
Full splash cabin
