Used 2005 HURCO TM10 | CNC Lathes
Have one to sell?
ConditionUsed
1 available

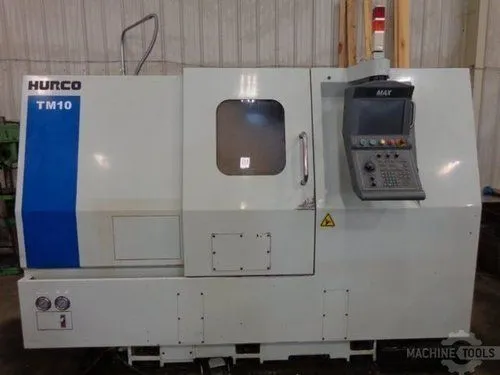

Hurco Model TM10 2-Axis CNC Lathe, New 2005
Auto Strong NB-210 10" 3-Jaw Chuck
Hurco Model TM10 2-Axis CNC Lathe, New 2005
Serial Number: TM10-01002075AAA
CATALOG SPECIFICATIONS:
Turning Length 20"
Turning Diameter 10"
Swing 23.5"
12 Station Turret
Bar Capacity 2.99"
Travels 9" X-Axis, 22" Z-Axis
3000 RPM
Programmable Tailstock
30 HP, 230 Volt, 3 Phase
Max CNC Control
Approx. 106"x72"x85", Approx. 9,000 lbs.
Hurco Model TM10 2-Axis CNC Lathe, New 2005
Auto Strong NB-210 10" 3-Jaw Chuck
Imperial
| Swing | 23.5" |
| Machining Length | 20" |
| # Axis | 2 |
| Chuck Size | 10" |
| Bar Capacity | 3" |
| Power | 30 hp |
| Max RPM | 3,000 RPM |
| Turning Dia | 10" |
| Tailstock | Yes |
| Control | CNC (HURCO) |
| Dimensions | 106"x72"x85" |
| Weight | 11025 |
Hurco Model TM10 2-Axis CNC Lathe, New 2005
Serial Number: TM10-01002075AAA
CATALOG SPECIFICATIONS:
Turning Length 20"
Turning Diameter 10"
Swing 23.5"
12 Station Turret
Bar Capacity 2.99"
Travels 9" X-Axis, 22" Z-Axis
3000 RPM
Programmable Tailstock
30 HP, 230 Volt, 3 Phase
Max CNC Control
Approx. 106"x72"x85", Approx. 9,000 lbs.
