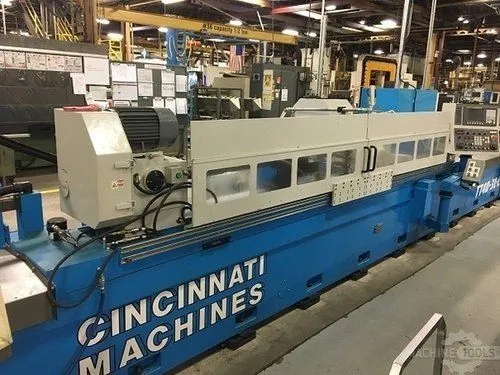

2017 CINCINNATI MACHINES TT40/30L-C2-S CNC
Cylindrical Grinders Including Plain & Angle Head
Fanuc Oi-TF CNC Control, Software to Crown and Taper Grind
Spindle Chiller
Automatic Grinding Wheel Balancer
Marposs In-Process Sizing Gauge
Lateral (Shoulder) Gauge
Uni Magnetic/Paper Coolant System
(2) Table Steady Rests
(3) Wheel Hubs
Tailstock Mounted Dresser and Table Mounted Dresser
| Swing | 15.74" |
| Centers | 122" |
| Plain or Angle Head | Plain |
| Grinding Wheel Dia. | 20" |
| Plunge (Yes/No) | Yes |
| Gauging (Yes/No) | Yes |
| Control | CNC (Fanuc Oi-TF) |
CINCINNATI MACHINES TT40/30L-C2 CNC CYLINDRICAL GRINDER, INSTALLED AND NOT USED, NEW 2017, ONLY 30 RUN HOURS
Working capacity
Max. swing over bed or table mm Ø400
Max. distance between c.c. M 3.1M
Max. weight of rolling centers KG 800
Max. weight of rolling neck rests KG 1200
Max. O.D. ground with full wheel mm Ø400
Grinding dia. mm Ø5 ～ 400
Grinder & Feed
(X axis)
Wheel size(O. D. × Width × Bore) mm Ø500 × Ø152 × 50
Type of lubricating system - Hydrostatic & dynamic system
Wheel Speed R.P.M 0 ～ 1800
Cross travel of wheehead (X axis) mm 200
Max。 cross feed rate mm/min 1000 mm/min
Cross feed per pulse mm/p 0.001
Table (Z axis)
Travel of table or head (Z axis) mm Maximum Center Distance + 8”
Table Speed mm/min 25 ～ 3000 mm/min
Type of lubricating system - Hydrostatic & dynamic system
Neck rests Rest Diameter mm Ø30 ～Ø120
Workhead & Tailstock
Work Head Speed R.P.M 10 ～ 100
Size of center - MT#5
Moving speed of tailstock mm/min Manually
Quill Stroke mm 70
Power rating
Grind wheel motor HP 15 HP × 4 P(10 HP × 6P)
Work Head motor HP 3 HP × 6 P
Table traverse motor (Z axis) NM 12NM
Tailstock motor HP N/A
Cross feed motor (X axis) NM 8NM
Fanuc Oi-TF CNC Control, Software to Crown and Taper Grind
Spindle Chiller
Automatic Grinding Wheel Balancer
Marposs In-Process Sizing Gauge
Lateral (Shoulder) Gauge
Uni Magnetic/Paper Coolant System
(2) Table Steady Rests
(3) Wheel Hubs
Tailstock Mounted Dresser and Table Mounted Dresser
| Swing | 15.74" |
| Centers | 122" |
| Plain or Angle Head | Plain |
| Grinding Wheel Dia. | 20" |
| Plunge (Yes/No) | Yes |
| Gauging (Yes/No) | Yes |
| Control | CNC (Fanuc Oi-TF) |
CINCINNATI MACHINES TT40/30L-C2 CNC CYLINDRICAL GRINDER, INSTALLED AND NOT USED, NEW 2017, ONLY 30 RUN HOURS
Working capacity
Max. swing over bed or table mm Ø400
Max. distance between c.c. M 3.1M
Max. weight of rolling centers KG 800
Max. weight of rolling neck rests KG 1200
Max. O.D. ground with full wheel mm Ø400
Grinding dia. mm Ø5 ～ 400
Grinder & Feed
(X axis)
Wheel size(O. D. × Width × Bore) mm Ø500 × Ø152 × 50
Type of lubricating system - Hydrostatic & dynamic system
Wheel Speed R.P.M 0 ～ 1800
Cross travel of wheehead (X axis) mm 200
Max。 cross feed rate mm/min 1000 mm/min
Cross feed per pulse mm/p 0.001
Table (Z axis)
Travel of table or head (Z axis) mm Maximum Center Distance + 8”
Table Speed mm/min 25 ～ 3000 mm/min
Type of lubricating system - Hydrostatic & dynamic system
Neck rests Rest Diameter mm Ø30 ～Ø120
Workhead & Tailstock
Work Head Speed R.P.M 10 ～ 100
Size of center - MT#5
Moving speed of tailstock mm/min Manually
Quill Stroke mm 70
Power rating
Grind wheel motor HP 15 HP × 4 P(10 HP × 6P)
Work Head motor HP 3 HP × 6 P
Table traverse motor (Z axis) NM 12NM
Tailstock motor HP N/A
Cross feed motor (X axis) NM 8NM
